Step 01
Start local services
docker compose up -dAWS Data Engineering
Cloud Flight Fare Pipeline
End-to-end flight fare pipeline with a fast local demo path and a documented production-style AWS architecture, orchestrated with Airflow and modeled with dbt.
Honest scope: local demo execution is proven in the repo today, while the AWS path is documented as a production-style architecture with runbooks, warehouse SQL, and validation assets.
PythonAirflowdbtDockerPostgresAWS S3RedshiftGitHub Actions
Local demo
Docker + Postgres
AWS path
S3 + Redshift runbook
Orchestration
Airflow DAG + logs
Modeling
dbt marts + tests
Reviewer proof
Screenshots, SQL, CI
Fast local validation path
The fastest review path is local: start Postgres, load the sample fares, build the marts with dbt, then run the proof queries that show downstream readiness.
Step 02
Load sample fares
python scripts/load_sample_to_postgres.pyStep 03
Build dbt models
dbt build --project-dir dbt/flight_fares --profiles-dir dbt
Step 04
Run proof queries
python scripts/run_analysis_queries.pyArchitecture
Two clear paths, one analytics-ready outcome
The repo is strongest when reviewed as a proven local demo path plus a documented production-style AWS target. Both routes converge on dbt-modeled marts and SQL outputs that are ready for analytics review.
Proven local execution path
- Boot the local Docker + Postgres demo stack
- Load sample fare snapshots into warehouse-ready raw tables
- Run dbt staging, marts, tests, and docs against Postgres
- Execute proof queries that validate analytics-ready outputs
Documented AWS target path
- Ingest daily fare snapshots to S3 bronze storage
- Load warehouse tables into Redshift with runbook-backed SQL helpers
- Orchestrate the warehouse path with Airflow and dbt
- Use validation SQL to confirm mart row counts and readiness
Shared analytics handoff
- Mart outputs include
marts.fact_fares,marts.dim_route, andmarts.dim_date. - Docs explain how analysts should query route, pricing, and timing patterns
- Example SQL covers route trends, monthly movement, and lead-time analysis
- CI validates linting, tests, demo loading, and dbt build steps

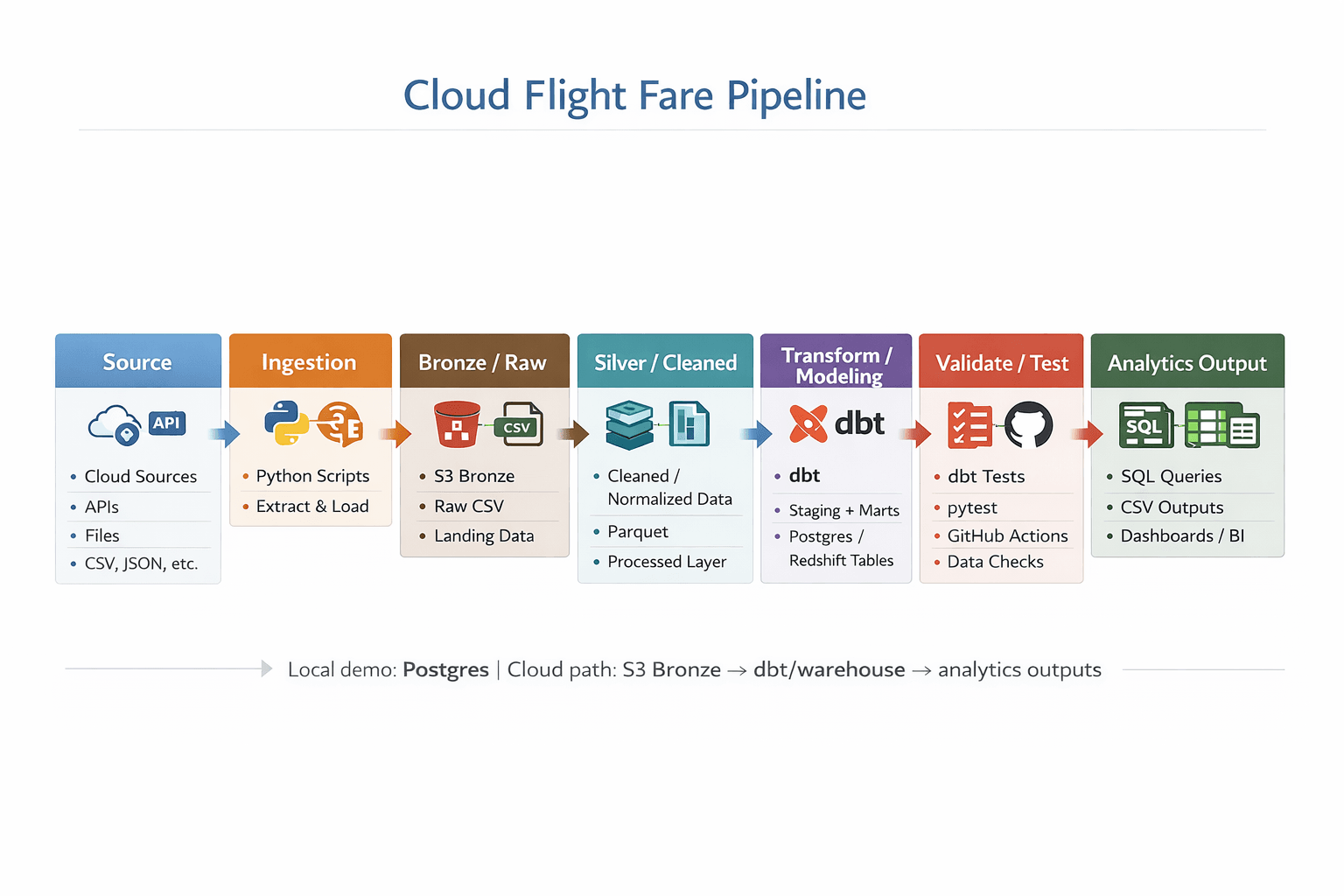

Architecture Diagram
Repo architecture overview showing ingestion, bronze/raw landing, silver/cleaned processing, dbt modeling, validation, and analytics outputs.
Analytics-ready outputs
Downstream analysis is visible, not implied
This case study does not stop at ingestion and modeling. The repo documents the marts, the analyst query patterns, and the downstream output handoff so reviewers can see what gets delivered after the pipeline runs.
Route fare trends
Route-level SQL shows how
Route trend SQLmarts.fact_fares and marts.dim_route support pricing trends by route.Monthly fare movement
README rollups make the time-series handoff clear without implying a live reporting layer.
Example queriesLead-time analysis
Lead-time queries show how the marts support booking-window and pricing review.
Lead-time SQL
Preview artifact
Dashboard preview artifact
The repo includes a static downstream artifact for reviewer handoff. It is shown here as documentation evidence, not as a claim of a live hosted BI application.
Execution Proof
Real proof assets shown directly on the page
Reviewer evidence is surfaced here instead of being hidden behind link lists. The screenshots below come from the project repo and cover storage proof, orchestration proof, execution logs, and downstream artifact handoff.
S3 bronze
Open

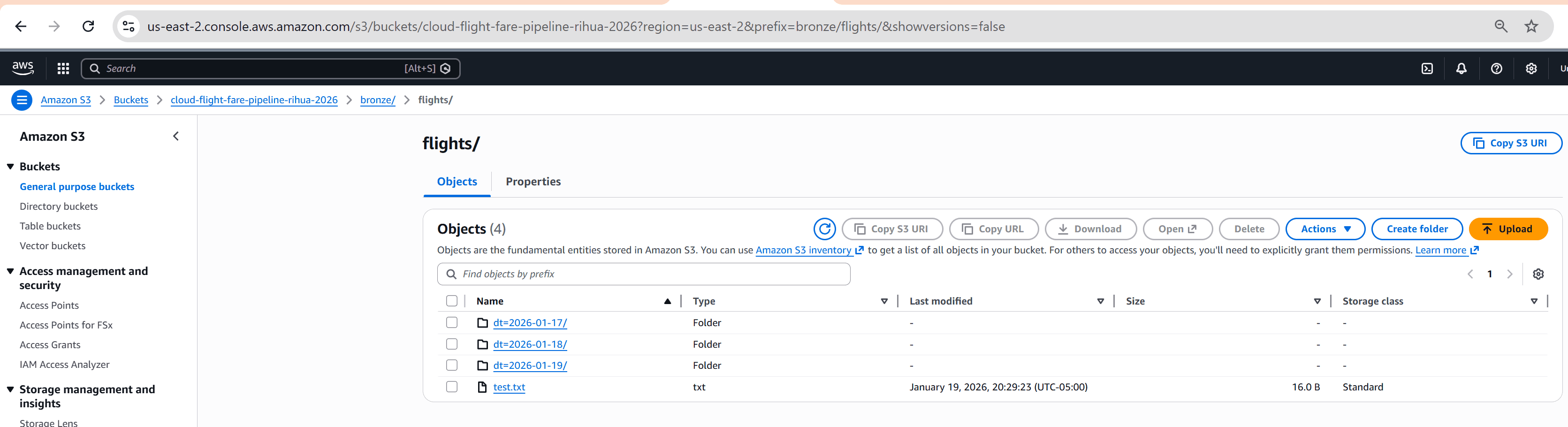

Bronze ingestion landed in S3
Week 3 proof showing dated fare snapshots stored under the bronze bucket path.
Airflow graph
Open

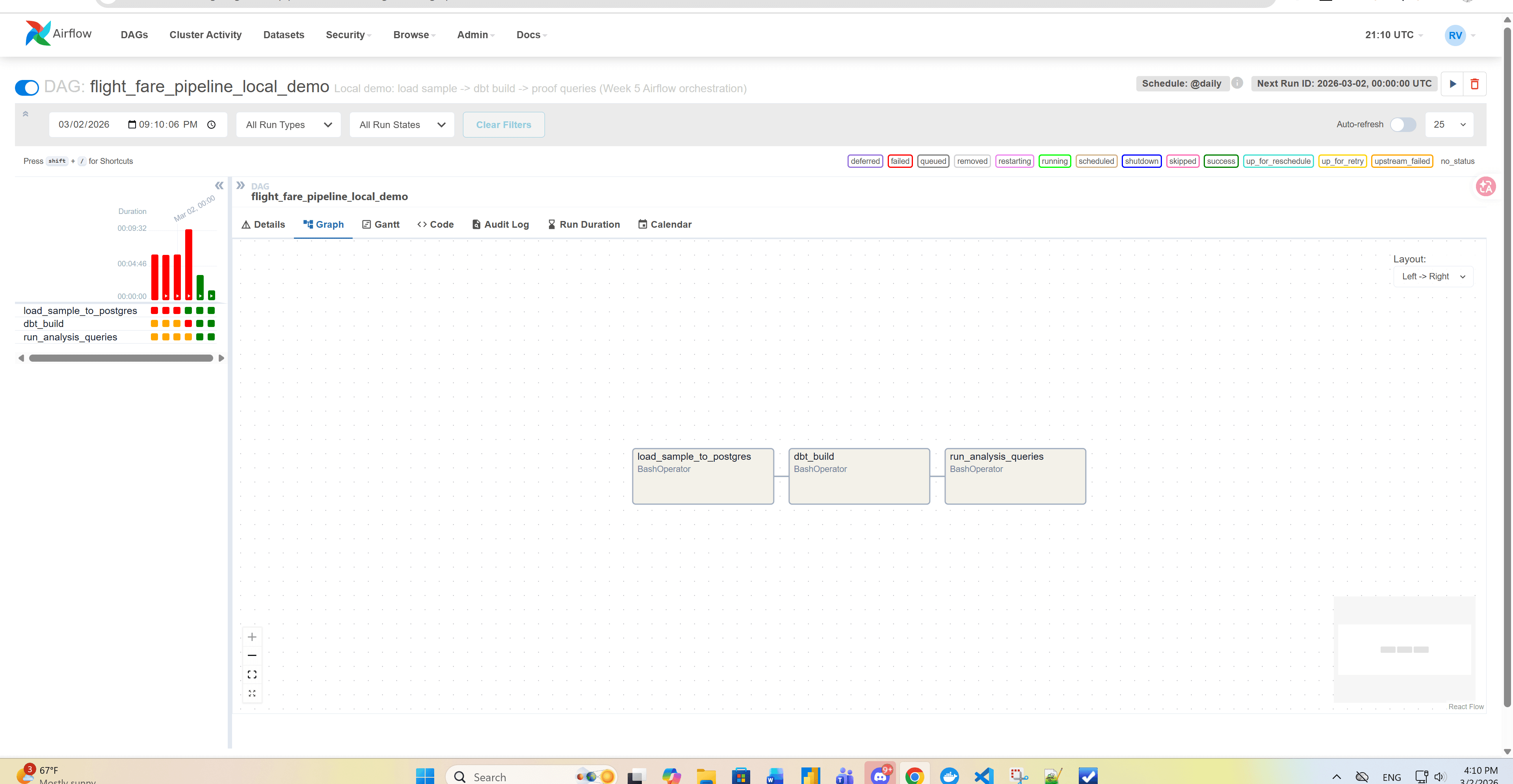

Runnable local DAG graph
Week 5 Airflow graph view showing the local load, dbt build, and proof-query chain.
Task log
Open

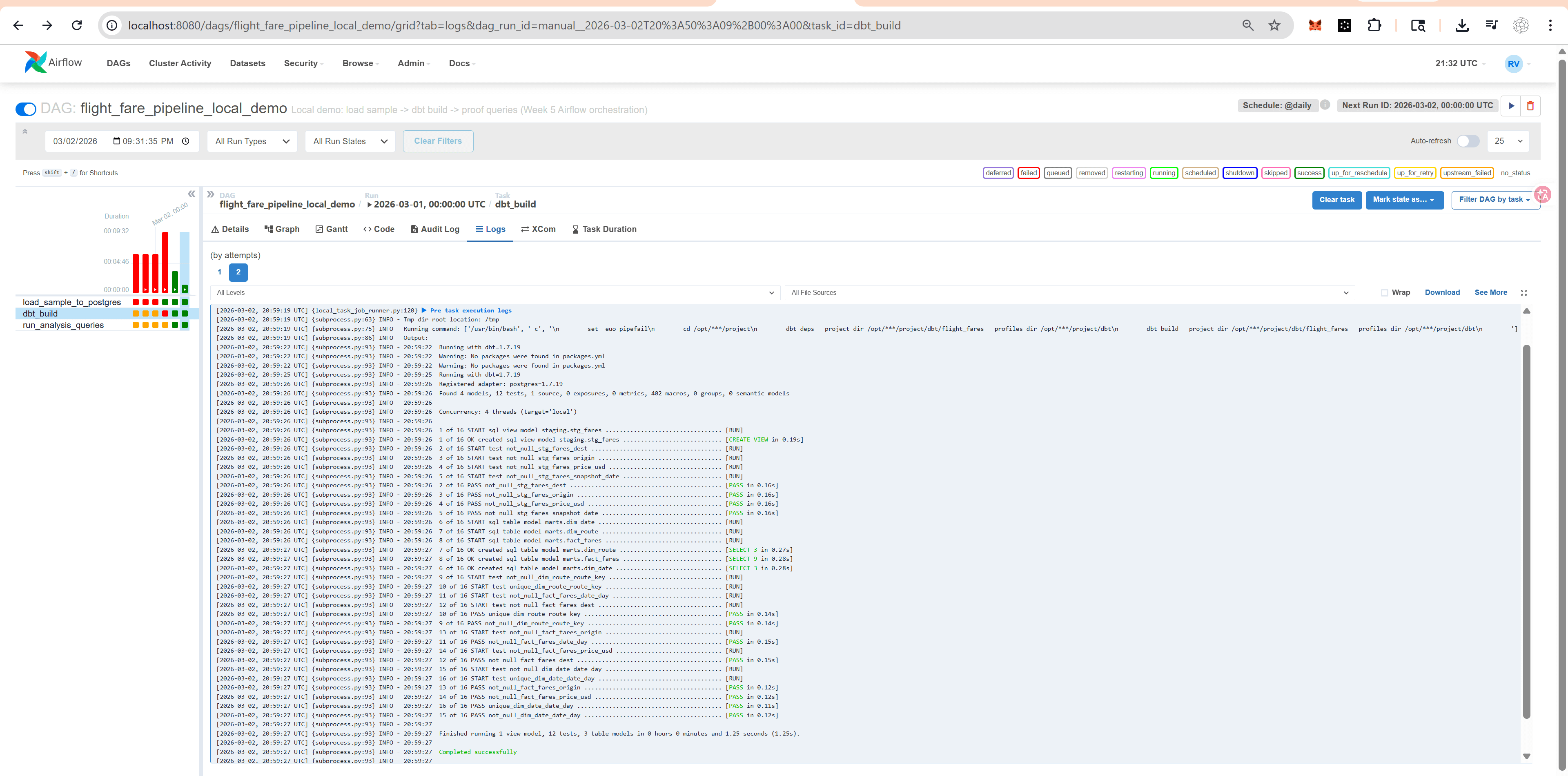

dbt build execution log
Saved Airflow task-log evidence for a successful dbt build and model tests.
Preview artifact
Open

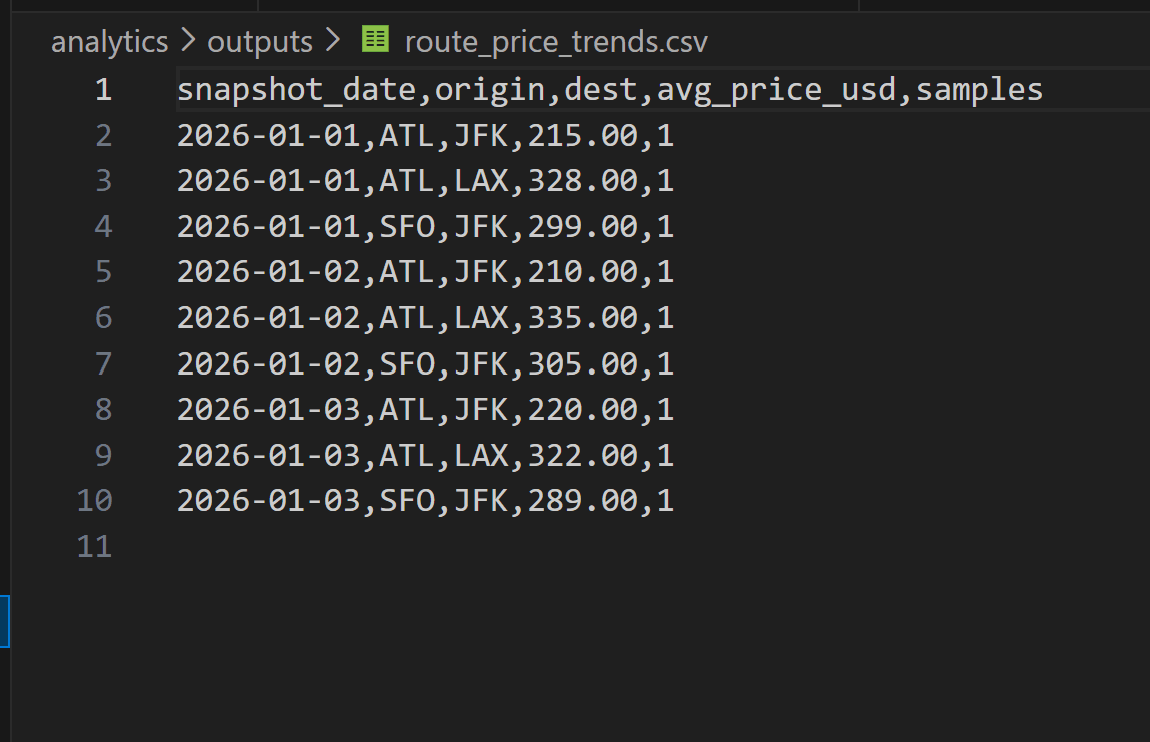

Dashboard preview artifact
Static repo artifact for downstream analytics handoff. It is not presented here as a live hosted BI app.
Reviewer path
Start with the local demo path, then review the AWS/Redshift runbook, followed by the proof assets and docs for the documented target. That keeps the proven local scope and cloud target easy to separate.
